Difference between paper cup machine and jacket machine

Author:MINGYUAN Paper Cup Machine SuppliersFROM:Disposable Cup Machine Manufacturer TIME:2024-03-14

Does the double wall paper cup machine make both single wall paper cup and double wall paper cup ?Perhaps ,you are confused with the single wall paper cup machine and double wall paper cup machine .Well, this article will show you the difference for these two machines


Table of Contents  1.what is the double wall paper cup machine & single wall paper cup machine ?

2.Paper fan printing design difference

3.The raw materials is with bottom roll or not ?

4. The machine is with bottom cutter unit or not ?

5.The machine is with bottom heaters or not ?

6. Is it with Top curling unit or not?

7.The difference in finished cups products and the full working process to make the double wall paper cups.



1.what is the double wall paper cup machine & single wall paper cup machine ?

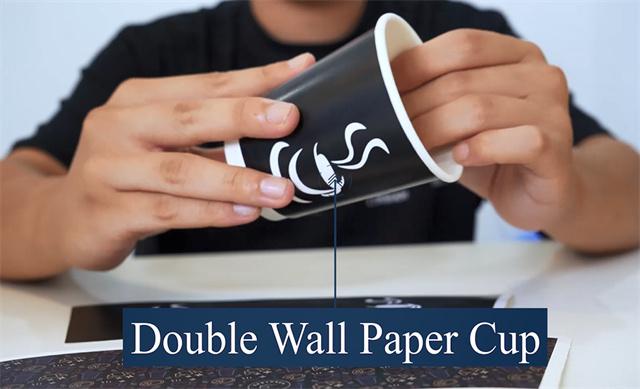

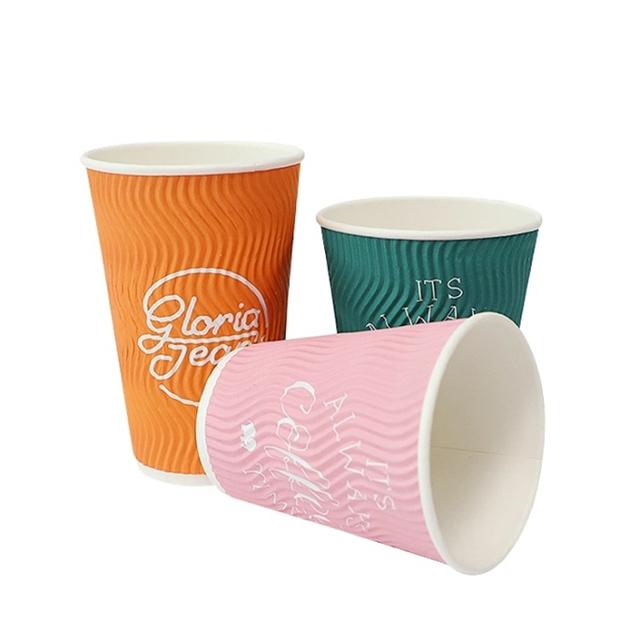

The double wall paper cup machine can only make the double wall paper cups (hollow type or corrugated /ripple type double wall cups)

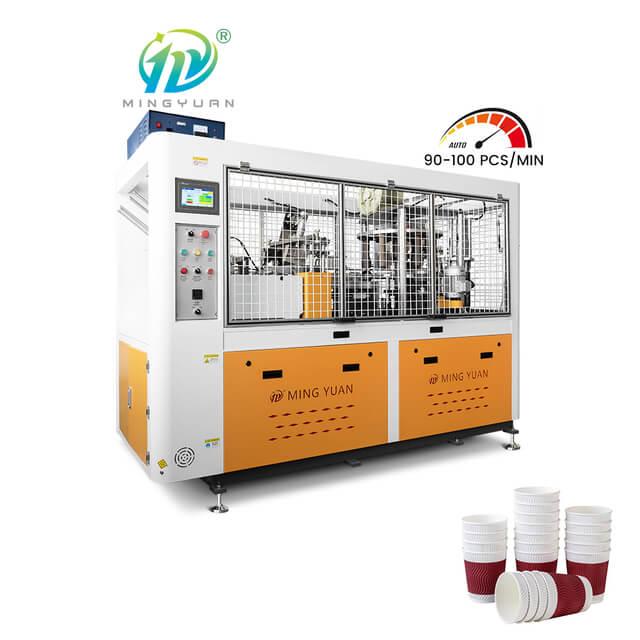

MYC-DW100 double wall paper cup machine.jpg

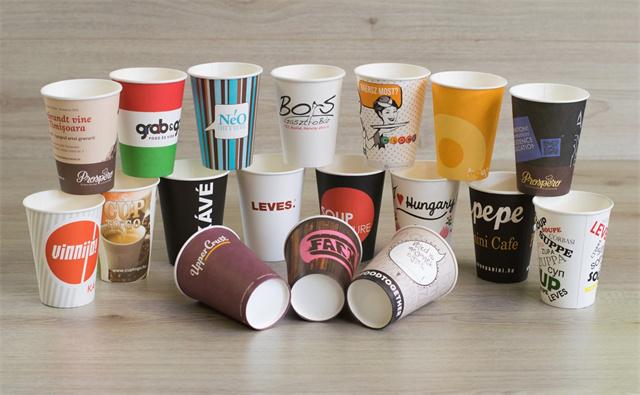

the single wall paper cup machine only make the single wall cups .

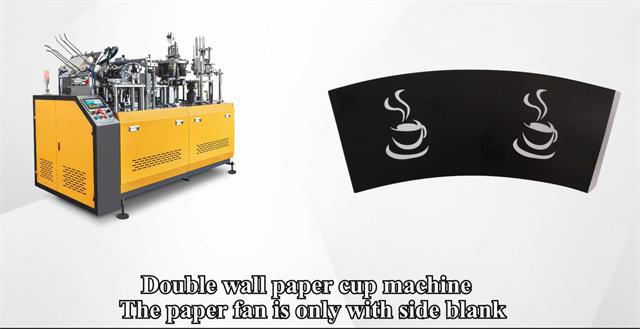

2.Double wall paper sleeve fan design: only the paper fan side is 5-6MM blank for ultrasonic sealing

single wall paper cup fan design the top ,side and bottom three sides are with blank for top curling , ultrasonic sealing and bottom knurling sealing.

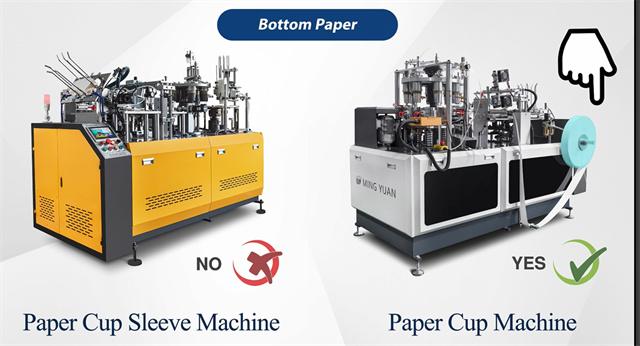

3.The double wall paper cup machine only makes the sleeve wall and stick the outer sleeve to single wall cups, therefore, there is no need for bottom roll paper in double wall paper cup machine .



the paper fan and bottom roll paper is necessary for the single wall paper cup machine to make the single wall cups

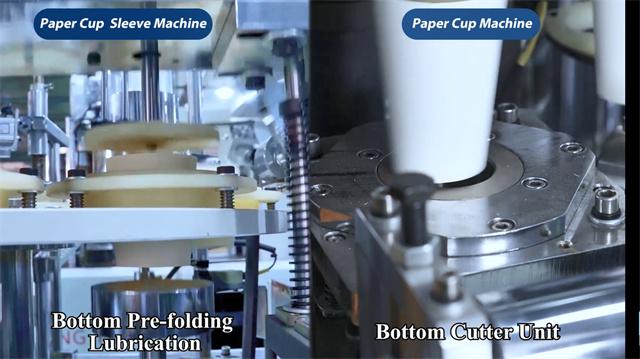

4.There is no bottom cutter in double wall paper cup machine , but the bottom cutter is important for single wall paper cup machine to cutter the bottom

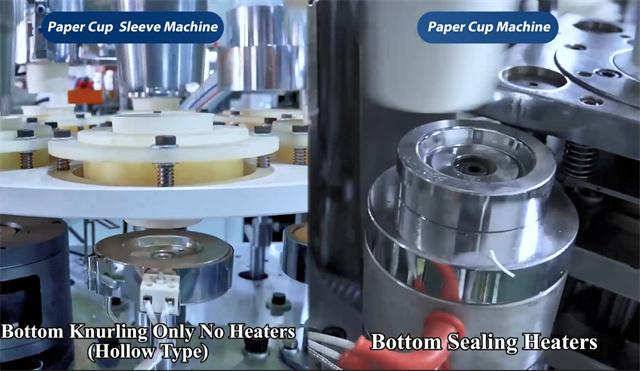

5.The double wall paper cup machine is only with bottom knurling unit to make the hollow type double wall paper cups . While the single wall paper cup machine is with bottom heater for heating and sealing the cup bottom without leakage

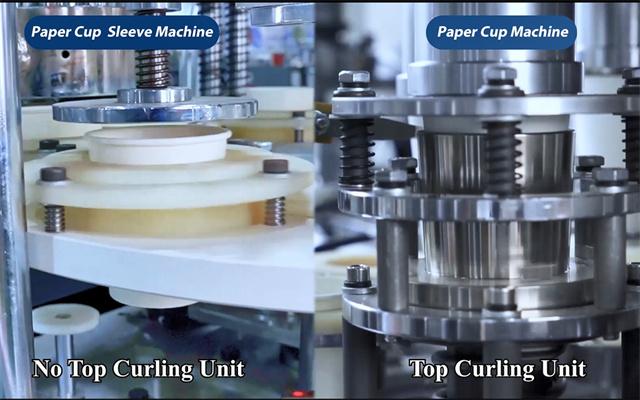

6.The double wall paper cup machine is without top curling unit , but the single wall paper cup machine is with it to make the rim to fit the lid for coffee tea cup and ice cream cup.

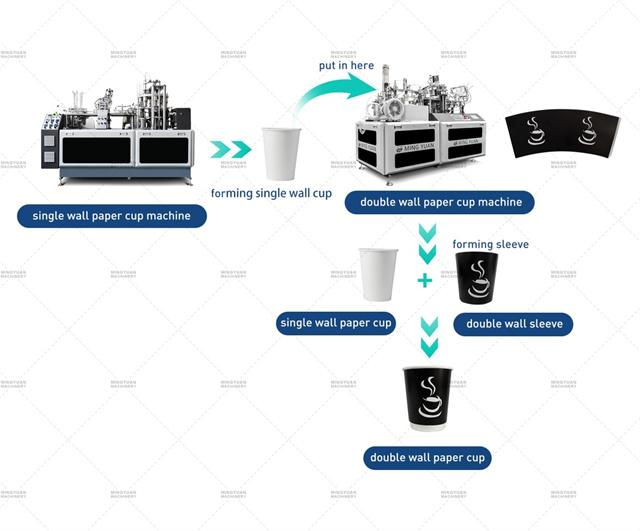

7. The double wall paper cup machine is used to form the outer sleeve and stick it with the single wall cups . The final products is double wall paper cups . the single wall paper cup machine can make the single wall paper cups which is without the sleeve . if you want to make the double wall paper cups , you need to buy two machines . the first one is single wall paper cup machine which is for making the single wall cups as raw materials to be put in double wall paper cup machine (second one machine ).Certainly , you can only buy the double wall paper cup machine and the finished single wall paper cups in local market.
