YOUR POSITION：HOME > Machines > Paper Plate Machine > MYC-ZDJ1000 Automatic High Speed Paper Plate Machine >
Technical Features 1
Quality Brand electric System like Delta, Schneider PLC control system be with Schneider Brand Made in France with Reliable quality
Technical Features 2
Better quality durable mould ,longer service life. the mould design can be customize as customers requirement


MYC-ZDJ1000 Full-automatic Paper Plate Machine
< >

MYC-ZDJ1000 High Speed Paper Plate Machine

Price: Negotiable
Model: MYC-ZDJ1000
Production Speed: 100-140 piece/minute (about 6000--9000pcs per hour)
Paper Plate Size: 2-12 inch (mold exchangeable)
Raw Material: White cardboard, kraft paper, PE laminated paper
Power Source: 380V 50Hz or other required
Machine Size: 3.0m x 1.7m x 1.7m
Total Weight: 2000 Kg
Suitable Paper Weight: 100-500 gsm (gram a square meter)
Certification: CE, ISO,SGS
Place of Origin: CHINA.

Get Quote
+86-19057361870

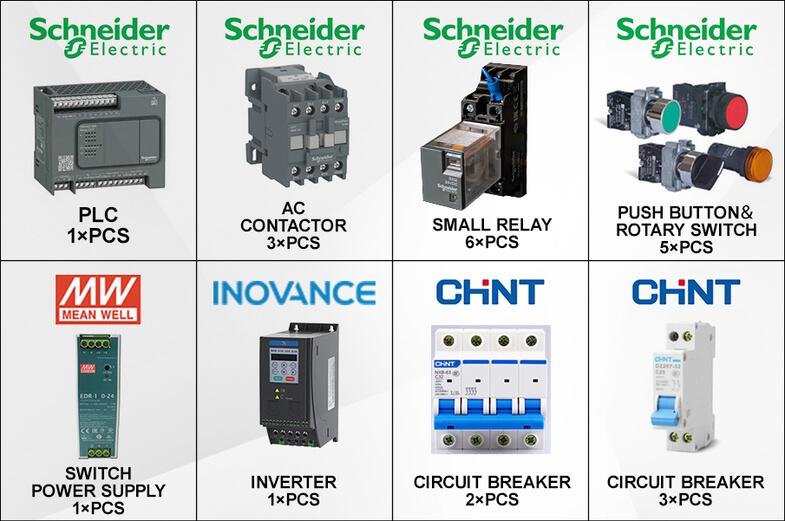

Electric Components List


ZDJ-1000 (2) (1).jpg

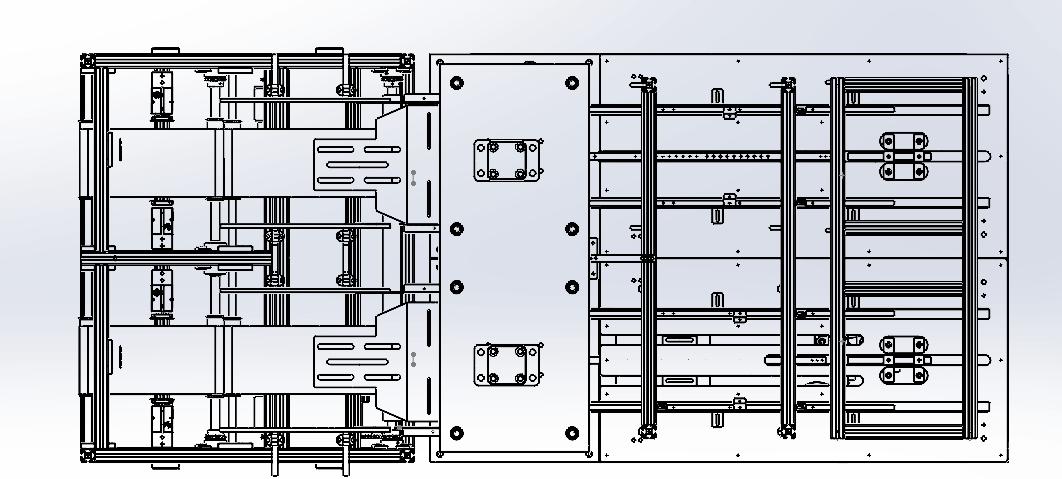

Machine Structure


High Speed Paper Plate Machine MYC-ZDJ1000

Working Stations

Single Stations/Double Stations

Paper Plate Size

2-12 inch (mold exchangeable)

Raw Material

Paper/paperboard,Aluminum foil coated paperOne side PE coated paper or other

Suitable Paper Weight

100-500 gsm (gram a square meter)

Rated Productivity

50~70 piece/minute(about 3000--4200pcs per hour)

100-140 piece/minute (about 6000--9000pcs per hour)


Power Source

Power Source

Total Power

7KW / 8.5KW

Total Weight

1000 KG / 2000KG

Package Size

1.85m x 0.72m x 1.8m

3.0m x 1.7m x 1.7m

Oil Cylinder

MI-63-125-5t-X
Flow:0.3 m3 /min
Oil pressure:Mpa 0.3-0.6
Cylinder stroke: 125 mm




Technical Features:

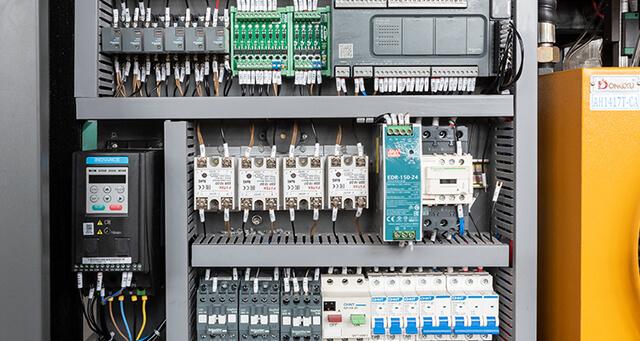

1.Electric System：Quality Brand electric System like Delta, Schneider PLC control system be with Schneider Brand Made in France with Reliable quality


2.Hydraulic System：Hydraulic oil recycling ,it requires less air and energy saving , Keep sure stable forming plate. Normal hydraulic Cylinder pressure is up to 5T to meet the requirements of different thickness paper plate forming.lt is adopted with fan cooling system to Reduce the temperature and make it longer service life.


3.Plate Forming Mould：Better quality durable mould ,longer service life. the mould design can be customize as customers requirement

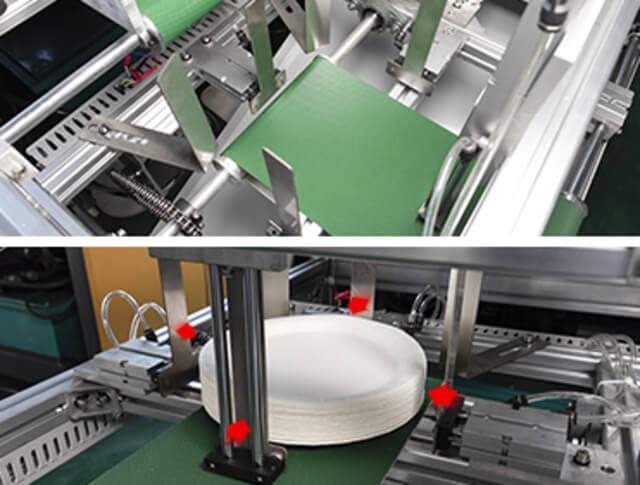

4.Conveyor System：The finished plates are transferred by the conveyor which is easier for collecting the plate


5.Counting & Collecting System：The counting &collecting system with sorting function can stack the finished paper plate in order, which is convenient for

packaging and save the labor costs.

Related Products

More》

Related Services

More》

Related Resource


Paper Plate Machine
Related Main Features
Electric System（ZDJ-1000)

Electric System（ZDJ-1000)...

Quality Brand electric System like Delta, Schneider PLC control system be with Schneider Brand Made in France with Rel...

MORE→
1
Hydraulic System

Hydraulic System...

Hydraulic oil recycling ,it requires less air and energy saving , Keep sure stable forming plate. Normal hydraulic Cyl...

MORE→
2
Conveyor System

Conveyor System...

The finished plates are transferred by the conveyor which is easier for collecting the plate ...

MORE→
3
Counting & Collecting System

Counting & Collecting System...

The counting collecting system with sorting function can stack the finished paper plate in order, which is convenient ...

MORE→
4
MYC-ZDJ1000 High Speed Paper Plate MachineHow It Work

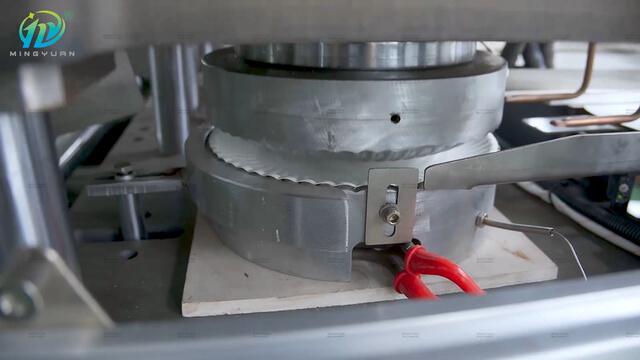

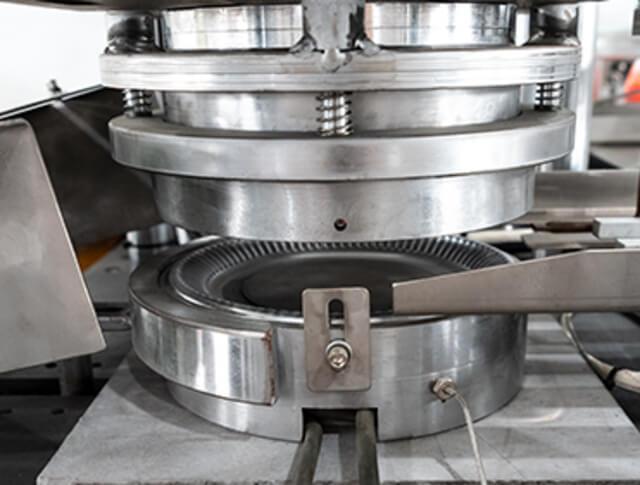

Heating and mold pressing to form plates

Heating and mold pressing to form plates

After the paper is fed, it enters the heating and mold pressing process. In a high-temperature environment, it is pressed by a precision mold to form a solid finished product plate.

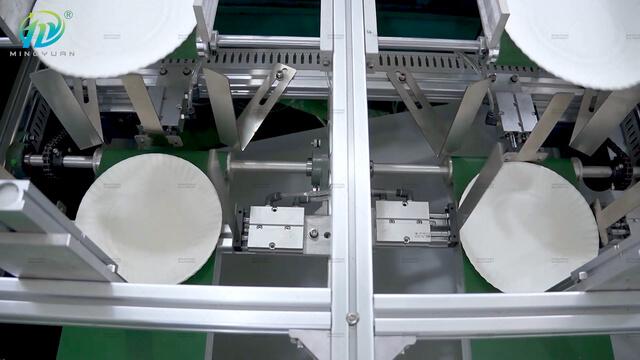

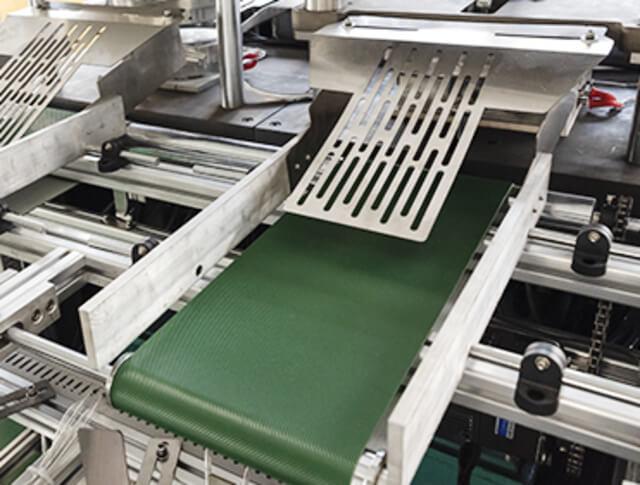

Conveyor belt transfer finished product section

Conveyor belt transfer finished product section

The finished panels are transported smoothly via a conveyor belt system, ensuring a smooth running of the production process.

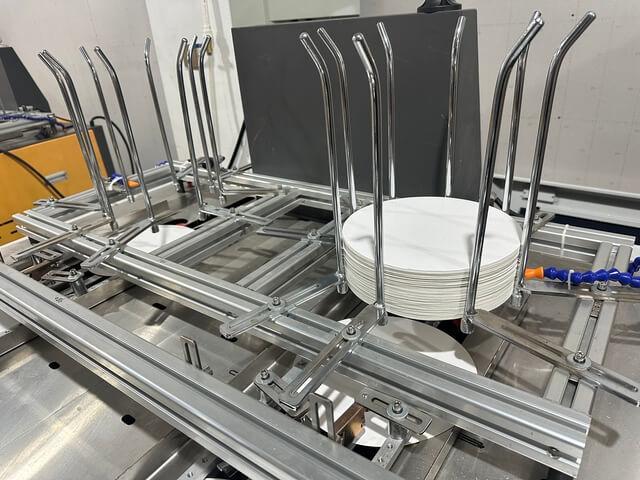

Collect, count and sort finished product sections

Collect, count and sort finished product sections

Using the intelligent sorting function, finished product plates are collected and counted in an orderly manner on the conveyor belt, providing accurate data support for subsequent packaging and shipping.

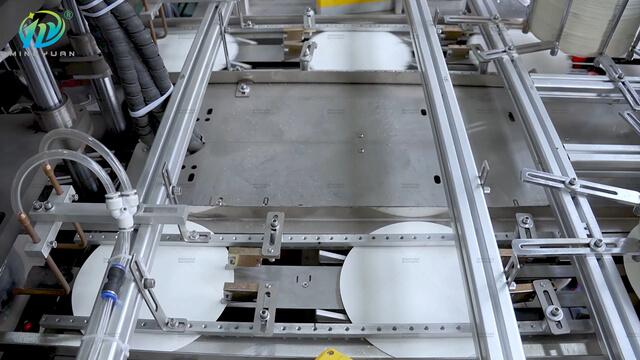

Two Times Paper Feeding

Two Times Paper Feeding

Through the two paper feeding systems, the effective supply of raw materials is ensured, production efficiency is improved, and preparations are made for subsequent processes.

Related Cases
MINGYUAN KNOWS WHAT YOU NEED,
Paper Cup Making Machine Market Leader！
8-inch and 12-inch full servo paper plate machine in Australia
8-inch and 12-inch full servo paper plate machine in Australia
Country: Australia Solution: ZDJ-1200 8-inch servo tray machine and ZDJ-1000 10-inch hydraulic tray machine A restaurant chain based in Sydney, Australia, known for its diverse demand for paper plates and growing production volumes. They once purchased a ZDJ-1000 8-inch paper tray machine and exp
Special-shaped paper plate machine
Special-shaped paper plate machine
In this case study, we will explore how an Italian customer successfully integrated a specially shaped paper plate machine into their production line. The client, a leading manufacturer of paper products, wanted to enhance their product range by introducing unique and attractive paper plates. Cu
Three 12-inch ZDJ-1000 paper plate machines in Indonesia
Three 12-inch ZDJ-1000 paper plate machines in Indonesia
Country: Indonesia Solution: JBZ-ZDJ1000 12-inch paper tray machine A chain catering company located in Bangkok, Thailand, such as fried rice, curry and stew. They had been looking for a paper plate that could meet their growing needs and be flexible for different dishes. After previously purchasi
ZDJ-1000 Double station paper plate machine in Thailand
ZDJ-1000 Double station paper plate machine in Thailand
Country: Thailand Solution: ZDJ1000 High Speed Paper Tray Machine Sizes required: 6 and 10 inch standard square and round paper plates Customers visit our factory hoping to buy a paper plate machine and bring several different paper plate samples for us to check whether our machine can ma
