YOUR POSITION：HOME > Machines > Paper Cup Machine > MYC-OCM100 Disposable Paper Cup Forming Machine >
paper cup manufacturing machine
< >

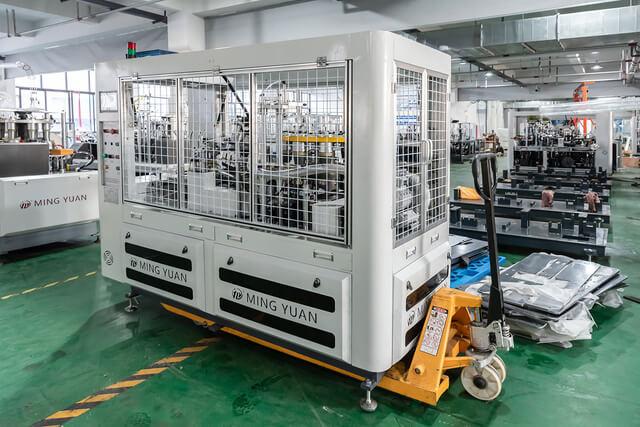

MYC-OCM100 High Speed Intelligent Model Paper Cup Machine

Price: Negotiable
Model: MYC-OCM100
Rated Speed: 100-110pcs/min
Paper Cup Size: 1.5oz-9oz
Raw Material: One or Two side PE coated Paper(Popular for Hot and Cold drink Cups)
Cup Side Welding: Ultrasonic Heater
Power/voltage: 50/60HZ,380V/220V ( better use 380V.3 Phase )or special Power requirement.
Machine Size: 2350*1100*2000mm
Total Weight: 1900KG
Suitable Paper Weight: 140-350gsm
Certification: CE, ISO,SGS
Place of Origin: CHINA.

Get Quote
+86-19057361870
Technical Features 1
Electric System：Our machine is equipped with renowned components, including Schneider AC contactor and Delta PLC controller, to ensure the reliability and excellent performance of the machine.
Technical Features 2
sensors：Sensor failure detecting and it stops working automatically if the machine has any problem, it can greatly improve operation safety

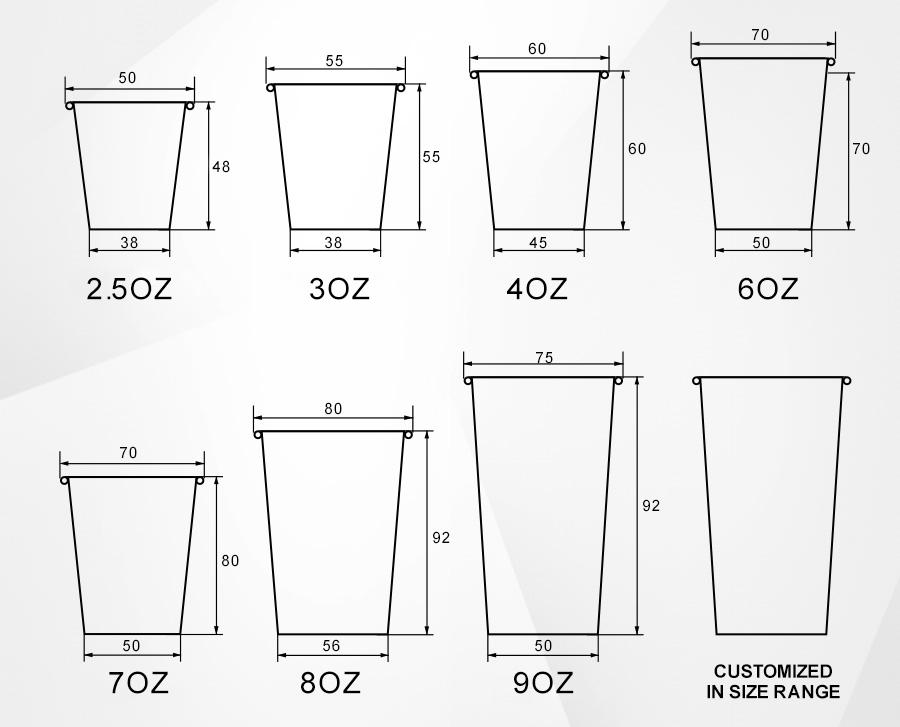

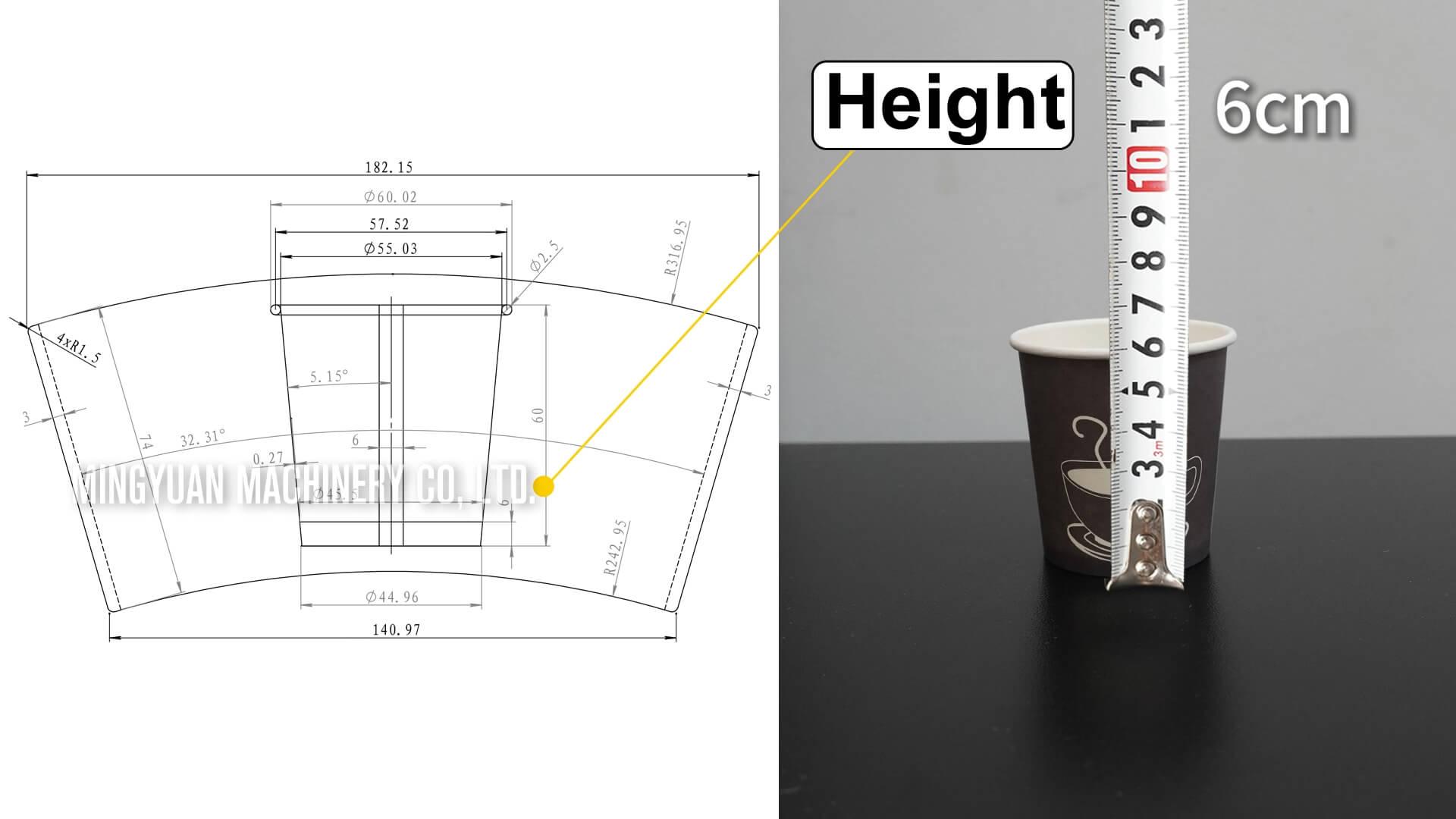

Min. /Max. Size

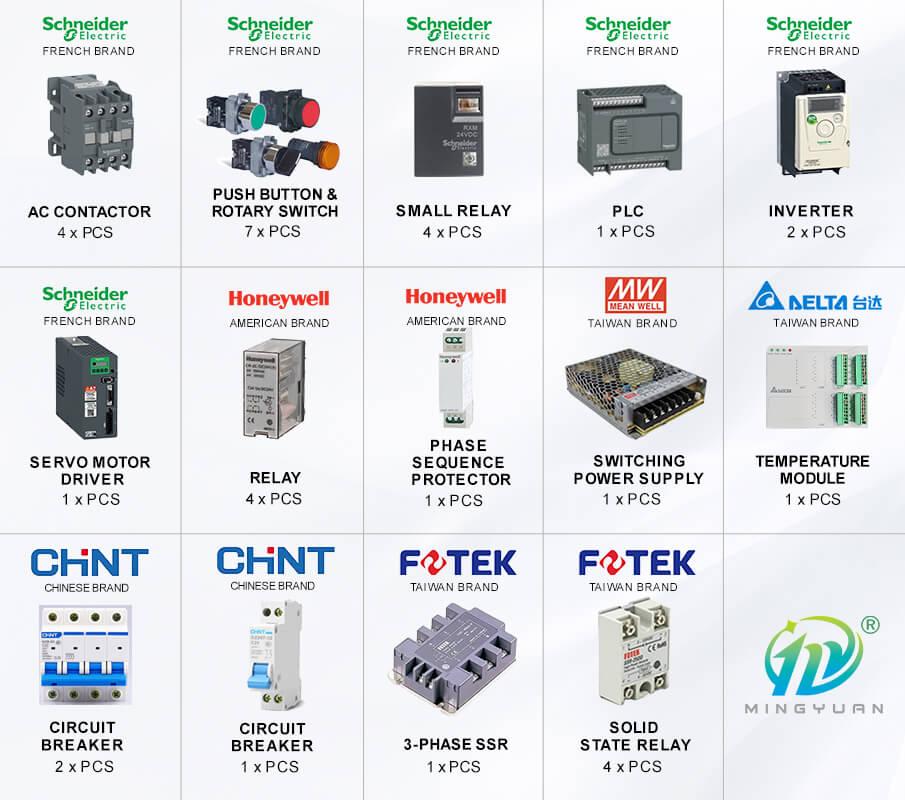

Electric Components List


OCM100ELECTRIC (2).jpg

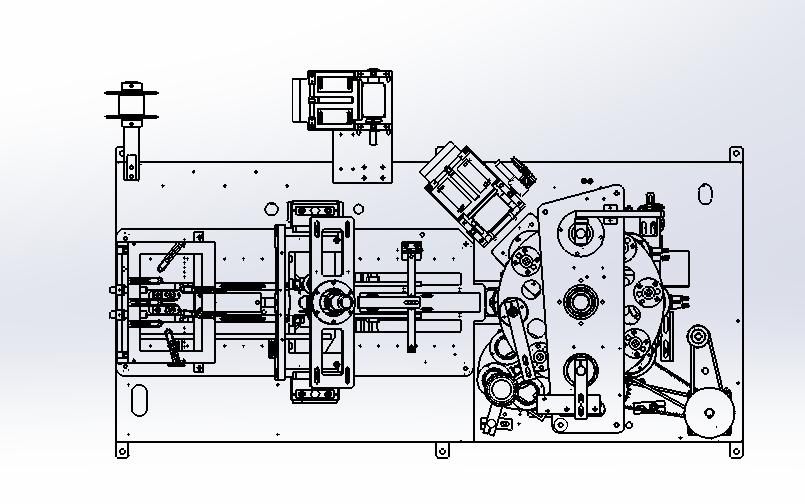

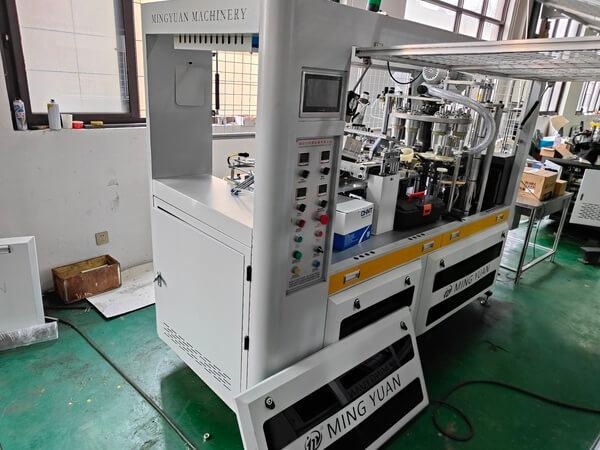

Machine Structure




MYC-OCM100 High Speed intelligent Model Paper Cup Machine

Cup Side Welding

Ultrasonic Heater

Paper Cup Siz

1.5oz-9oz

Rated Speed

100-110pcs/min ( Speed affected by cup size, paper quality & thickness)

Raw Material

One or Two side PE coated Paper(Popular for Hot and Cold drink Cups)

Suitable paper weight

140-350gsm

Power Source

50/60HZ,380V/220V ( better use 380V.3 Phase )or special Power requirement.

Total Power

6 KW

Total Weight

GW/NW: 2000KGS/1900KGS

Pack Size(L*W*H)

2050*1150*1900mm (20 GP Container load 6 sets,40HQ Container load 12 sets)

Cup Bottom Knurling

Heater Knurling (if use single PE coated paper)

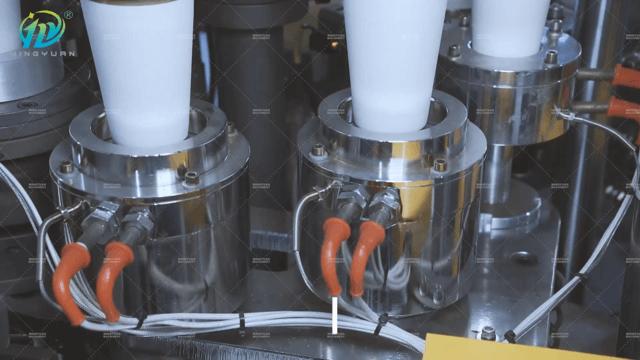

Cup Bottom Heating

Heater Knurling



Technical Features:


1.Electric System：Our machine is equipped with renowned components, including Schneider AC contactor and Delta PLC controller, to ensure the reliability and excellent performance of the machine.

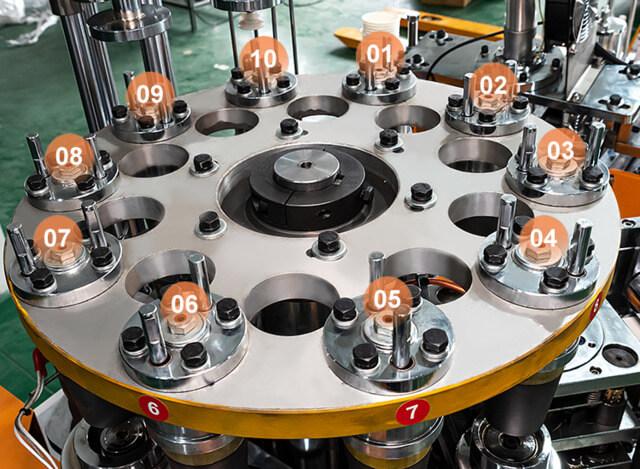

2.TEN MOULDS：Newly designed with ten molds for faster and more stable operation.

3.Five bottom heater system：ensuring better bottom sealing and preventing leakage issues.

4.sensors：Sensor failure detecting and it stops working automatically if the machine has any problem, it can greatly improve operation safety

5.Oil Lubrication And Circulation：which makes all gear moving parts working at high speed much more smoothly and greatly improve the service life of spare parts

6.Ultrasonic heater：Ultrasonic heater suitable for sealing the Single PE / Doule PE paper, Paper weight 140GSM-350GSM.

7.Full Gear Driving System：Main mechanism and moving parts are controlled by stronger anddurable gears which is more efficient and more stronger than chainand axis.(support stable running speed 110-120 pcs/minr ,longerservice life less troubles and lower noise)

8.Two Layer Paper Fan Feeding Unit：Two layer paper fan feeding unit, more stable and smooth for feeding paper in the slideway

9.New Design Separated Top Curling Unit:It can move separately and no need to work with the bottom heating unit,.which can greatly increase the speed of machine.
