MY-450W Automatic Plastic lid machine For Paper Cup

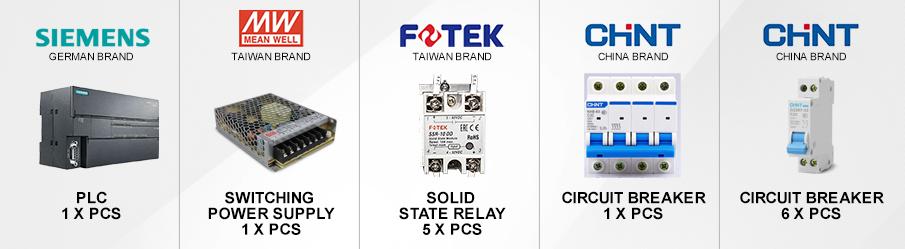

Electric Components List

Model	MY-450W	MY-420G
Punch Speed	15-35 punch/min	15-35 punch/min
Max. Forming size	430*300mm	430*150mm
Max.Material width	450mm	450mm
Stroke Range	100-280mm	65-165mm
Compressed Air	0.4-0.7Mpa	0.6-0.8Mpa
Total Power	8.2Kw	4.5Kw
Material Thickness	0.15-1 mm	0.15-0.5*340mm
Overall Dimension	2900*1000*1800MM	2500*1000*1700MM
Packing Size	3100*1100*1900MM	2150*1060*1750MM
Weight	1500 KG	1000 KG

Max. Forming depth	Standard Type 46mm Max Target 60 MM
Mold Cooling	60L/H tap water /recycle water
Voltage	380V/220V 50HZ

Technical Features:

1.Electric System：High stability of inovance PLC control system and Schneider brand Electric system of the machine components to achieve reliable quality and easy maintenance

2.Touch Screen：It adopts PLC controller and touch screen (man -machine interface)  all the working parameters can be set up on the control panel which is convenient for parameter setting and adjusting.(easy to operate)

3.Servo Motor：The plastic sheets feeding is controlled by a large servo motor to ensure feeding more accuratly and more stably .

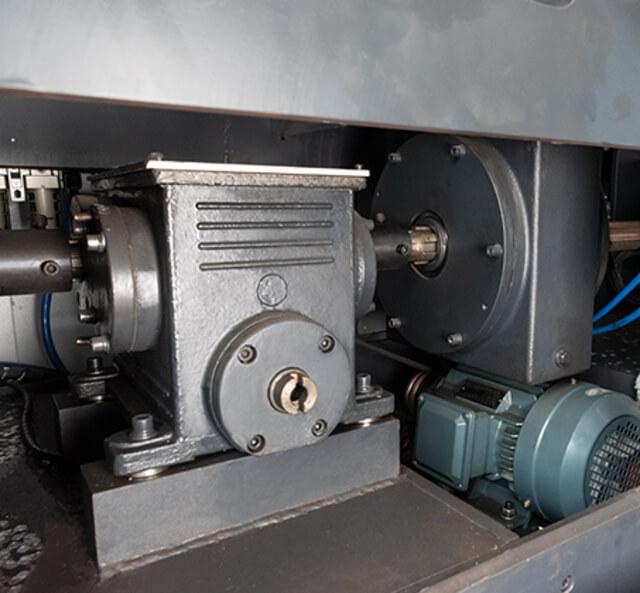

4.Speed Reducer & Motor：Speed reducer is synchronized with the motion of main shaft to reduce the errors and control the speed.it is used better quality variable frequency stepless motor in machine for speed regulation

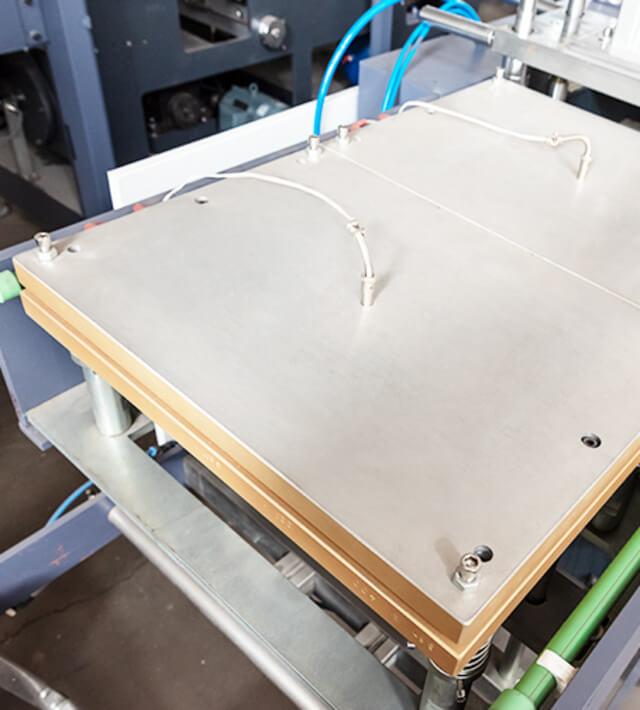

5.Heating Plate System & Safety Cover：The heating plate unit which softens the material quickly and  efficiently is adopted to ensure continuous and stable heating to reach the pressure forming temperature Safety cover:ensure safe operation

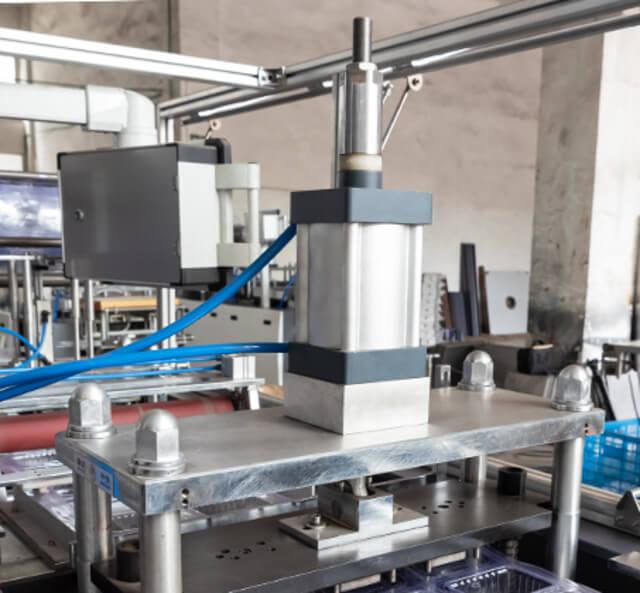

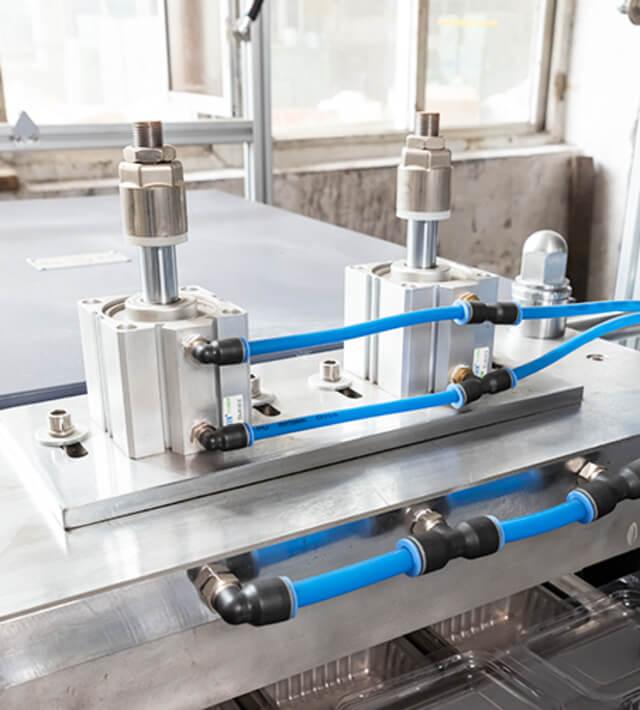

6.Big Air Cylinder & Punching Mould：Circular holes,crossed holes,different options are available

7.Robot Hand & Forming Mould：durable forming mould can be changed easily for different plastic products

8.Mould：Durable Forming mould which can be customized for different sizes    of production is easy to be changed .punching mould are durable and no cutting burr troubles

9.Chiller Machine & Screw Type Air Compressor & Lifting And Feeding Unit & Collecting Conveyor：Durable Forming mould which can be customized for different sizes of production is easy to be changed .punching mould are durable and no cutting burr troubles
