Technical Features 1
Electric System:Quality Brand electric System like Delta, Schneider PLC controlsystem be with Delta Brand Made in Taiwan with Reliable quality
Technical Features 2
Color Mark Tracking Sensor:High sensitivity optical electric color mark tracking AND digital inputcut position which makes the sealing and cutting more accurate.

MY-600X Paper Cup Packaging Machine Hob Type Packing Machine

Price: Negotiable
Model: MY-250X/MY-350X/MY-450X/MY-600X
Max Film Width: 600mm
Form Bag Length: 70-500mm
Form Bag Width: 50-280mm
Form Bag Height: 70-500mm
Film Roll Diameter: Max 320mm
Packing Speed: Max 320mm
Certification: CE, ISO,SGS
Power: 220v 50/60Hz,3.4Kw
Machine Size : 4250*1080*1450mm

Get Quote

Sample

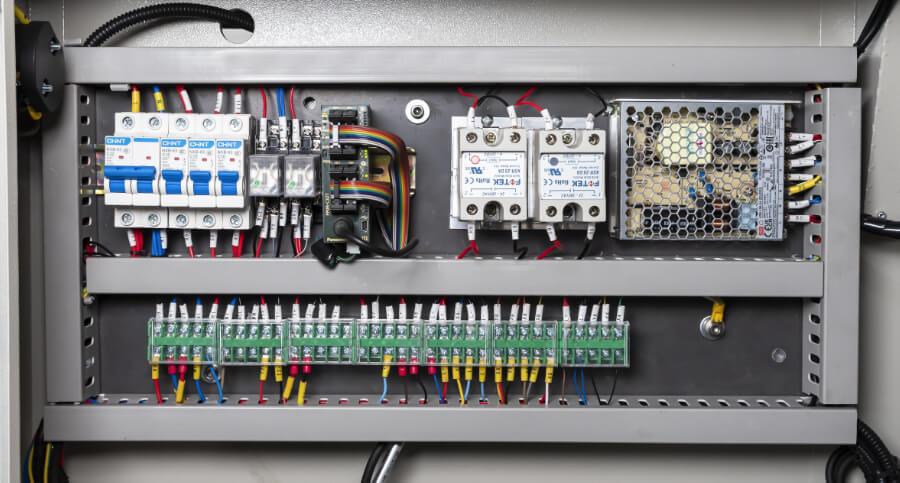

Electrical box:


Model
MY-250X
MY-350X
MY-450X
MY-600X

Max Film Width

250mm

350mm

450mm

600mm

Form Bag Length

70-280mm

70-300mm

70-400mm

70-500mm

Form Bag Width

30-110mm

50-160mm

50-210mm

50-280mm

Form Bag Height

40-60mm

70-300mm

70-400mm

70-500mm

Film Roll Diameter

Max 320mm

Max 320mm

Max 320mm

Max 320mm

Packing Speed

40-230Bags/min

40-230Bags/min

40-180Bags/min

40-100Bags/min

Power

220V,50/60HZ 2.6KW

220V;50/60HZ 2.8KW

220V,50/60HZ 3.2KW

220V,50/60HZ 3.4KW

Machine Size

3900*670*1400mm

3980*830*1400mm

4020*880*1400mm

4250*1080*1450mm

Weight

450kg

580kg

650kg

700kg

Bag Sealing Type

Back side seal

Back side seal

Back side seal

Back side seal



Technical Features:


1.Electric System:Quality Brand electric System like Delta, Schneider PLC controlsystem be with Delta Brand Made in Taiwan with Reliable quality

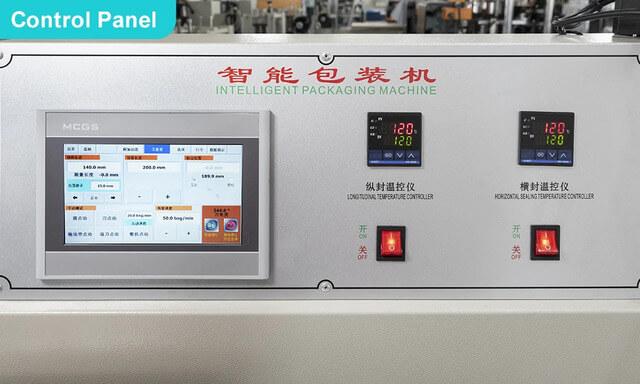

2.Control Panel:it is adopted with PLC controller;Main motor is equipped with variablefrequency speed requlation; touch screen man-machine interfaceEasy for parameters setting & operating. Chinese and Englishlanguages(optional)

3.Failure Detecting Senor:The machine will stop automatically if the failure detecting Sensorsdetect the packing film is run out, it can reduce the machine runswithout load.and improve the operation safety.

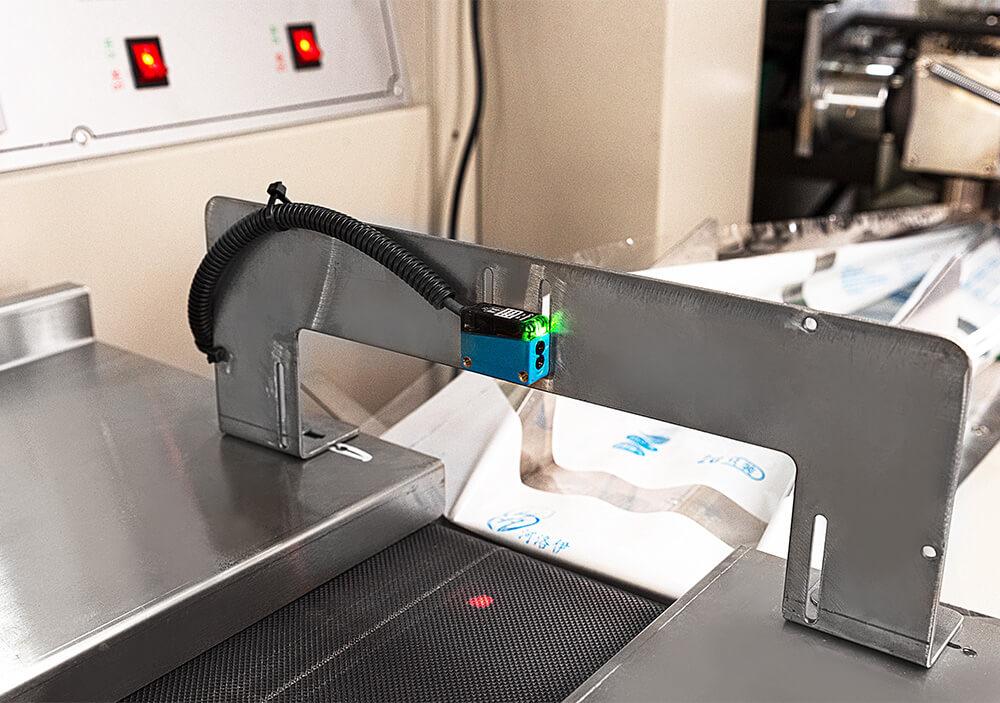

4.Color Mark Tracking Sensor:High sensitivity optical electric color mark tracking AND digital inputcut position which makes the sealing and cutting more accurate.

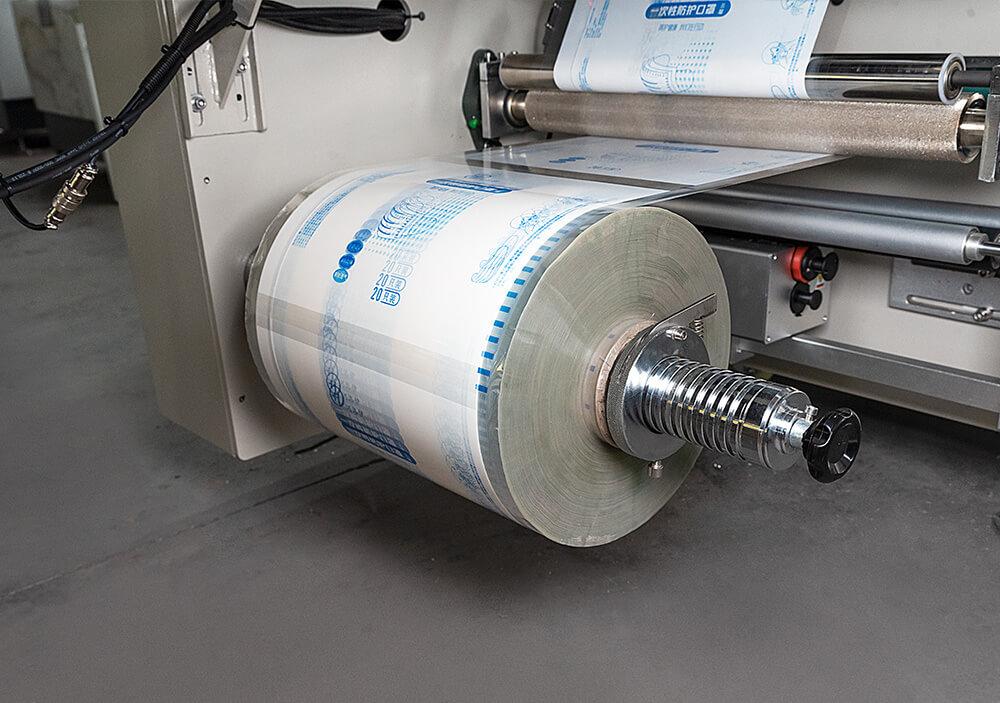

5.Plastic Film Roll Rack Device:Coordinating the film pulling process with multi-Linkage roll film shaftadapt to more plastic film materials, film rolling process is moresmoothly.

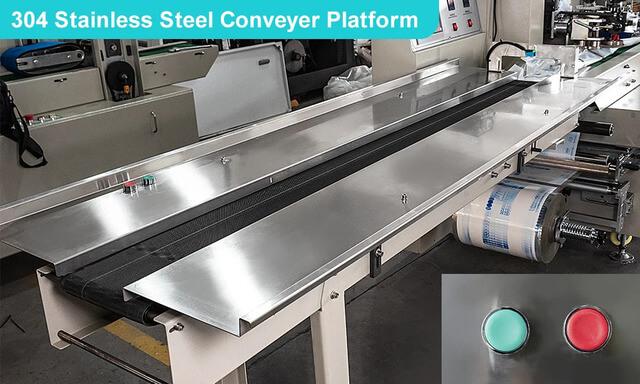

6.304 Stainless Steel Conveyer Platform:lt can easily transfer different products to thebag former and meet food grade packagingrequirements.

7.Bag Former:Bag former can let film covered the goods easily.And it can replacedthe part to adjust the width as what you need.

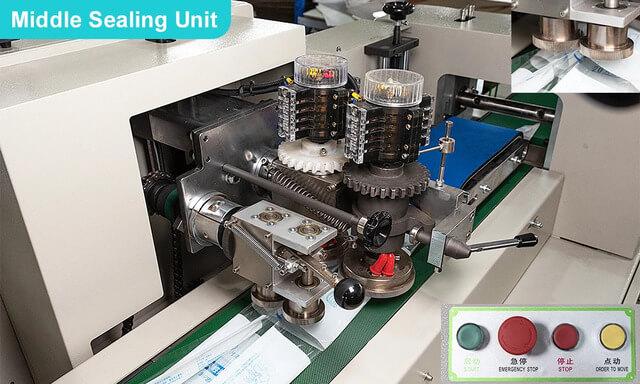

8.Middle sealing Unit:The roll film is pre-packaged through the heat-sealed area.The two rollers are called the film-sealing wheel, which is mainlyused for arranging the bag. The middle part is the heating wheel.The material is pure copper. The heat sealing speed is fast and theeffect is good.

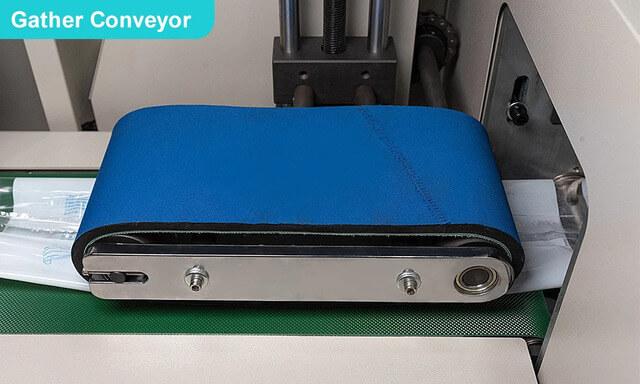

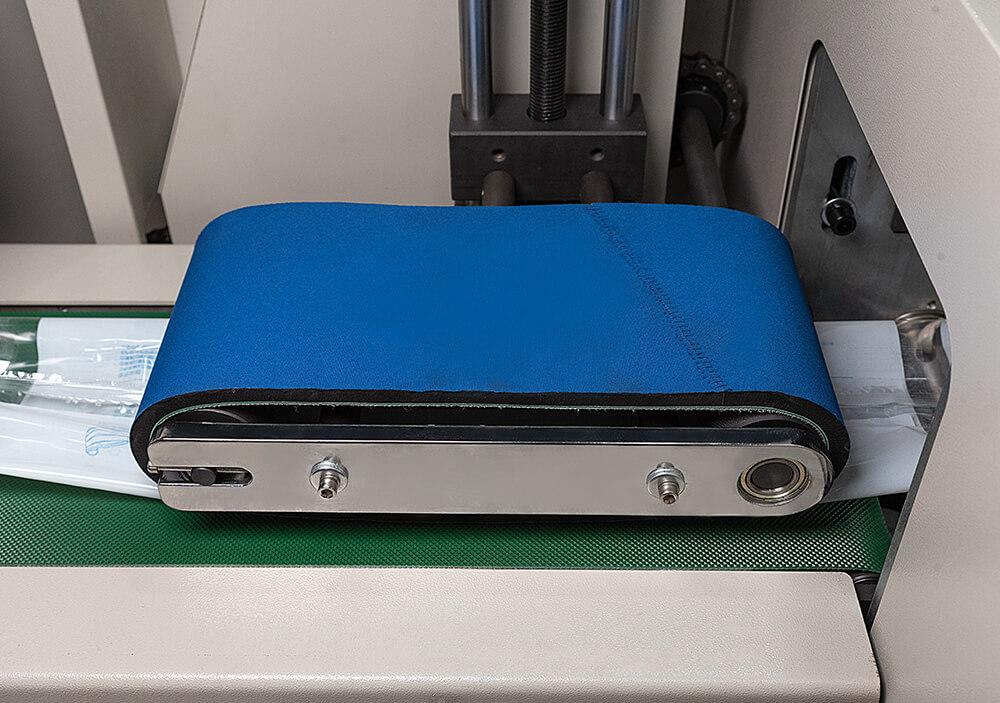

9.Gather Conveyor:Keep the effect of pre-packed after the row of bags, not let thepackaging film because of tension expansion, so that the goodscan be packed more closely.

10.Print Control Panel:Display preset temperature and current temperature, Adjust theprinting temperature Only close the printing function or close theentire printing module: Fine tune the print position. Make theprinting process smarter.

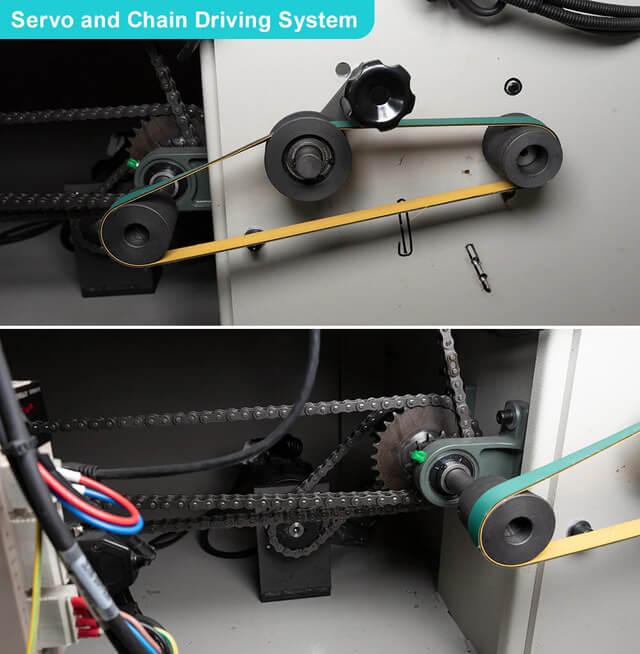

11.Servo and Chain Driving System:The chain drive shaft is tightened to make the transmission silky;It can be connected by multiple rotating shafts, making the structuremore simple.

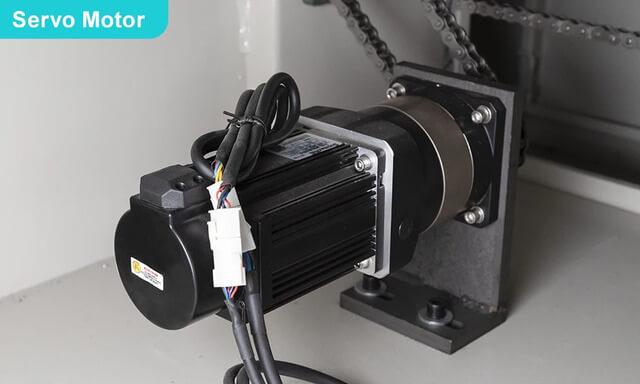

12.Servo Motor:The servo motor can adjust the speed of the main motor to makethe machine run more smoothly..

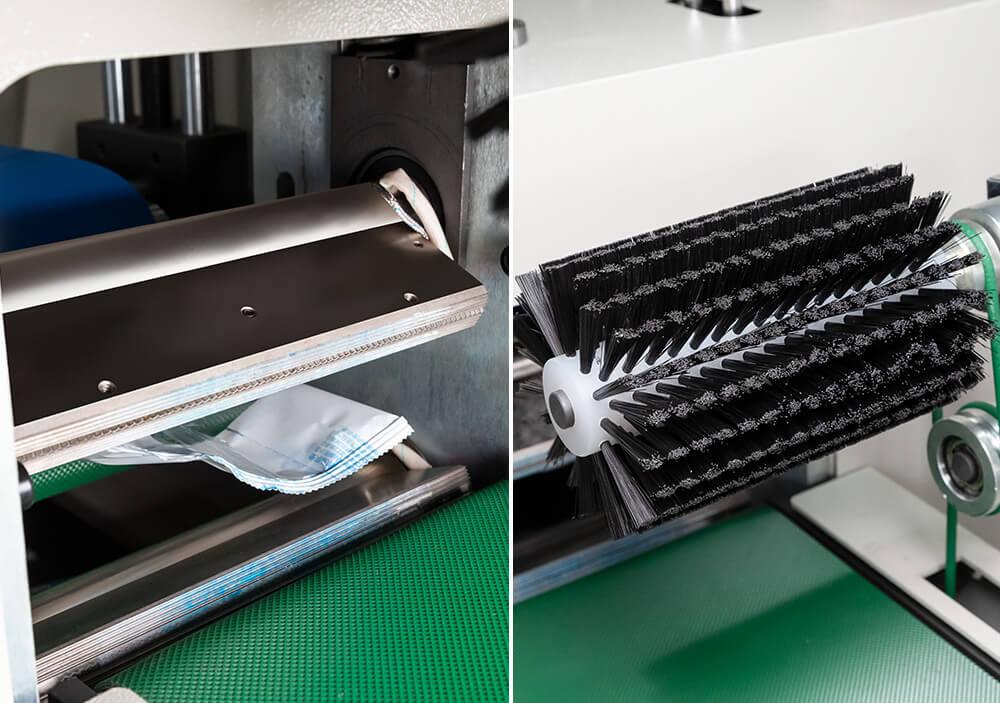

13.Cutter&Brush Device:Durable Cutter : without sticking knife or wasting film.Outlet( Brushto ensure orderly product discharge)

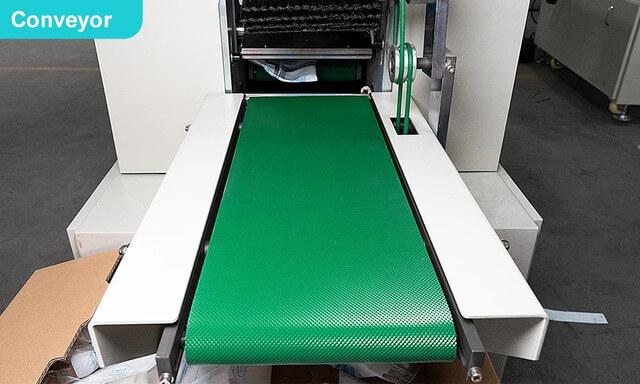

14.Conveyor:The finished product delivery device can send the finished productto the place you want to send, easy to collect
